Product Details:
Lamps are lightweight for easy handling

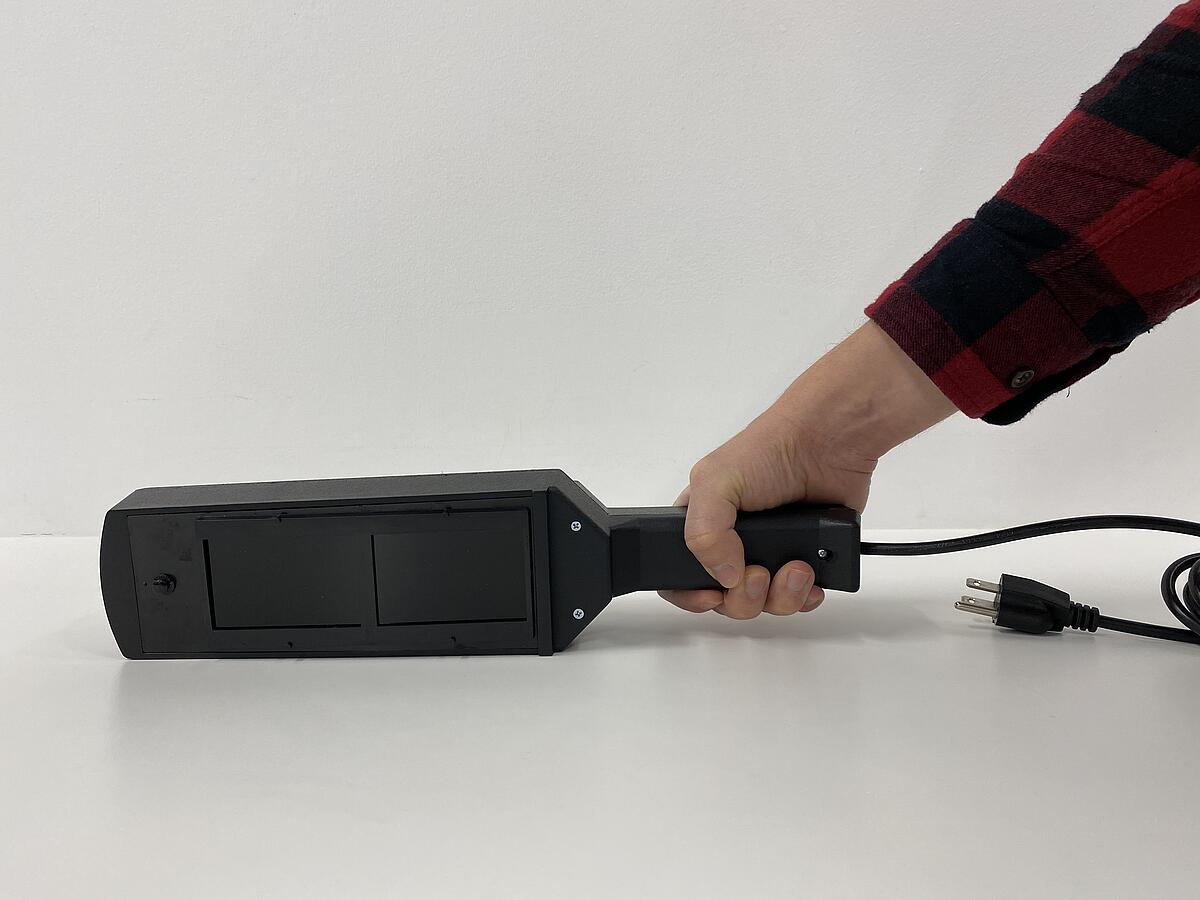

Handheld
UV Lamps (6 watts) are uniquely designed with an ergonomically designed
handle. Select from longwave, midrange, shortwave or combination
longwave and shortwave in the same lamp.
Applications include:
- Photochemistry/Phosphorescence.
- Inspection
Laboratory.
- General Chemical Laboratory.
*Product performance and effectiveness will depend on the user.*
Technical Data
| Specifications |
| Housing |
Plastic |
| UV |
Select from models with 254 nm, 302 nm, 365 nm UV or combination 254/365 nm |
| Watts |
Six |
| Lamp Dimensions |
14.9L x 3.2W x 2.5H in. (378 x 81 x 64 mm) |
| Lamp Stand Dimensions |
10.74H x 13L x 3W in. (273 x 330 x 76 mm) |
Order Information
| Part Numbers |
| 115 V |
230 V |
Model |
Description 6 Watt Lamps |
Filter |
| 95-0004-09 |
95-0004-10 |
UVG-54 |
Handheld UV Lamp, 254 nm
|
98-0004-03
|
| 95-0005-05 |
95-0005-06 |
UVGL-55 |
Handheld UV Lamp, 254/365 nm
(Multi-band split tube lamp)
|
98-0005-03
|
| 95-0007-05 |
95-0007-06 |
UVGL-58 |
Handheld UV Lamp, 254/365 nm
|
98-0004-03
|
| 95-0006-02 |
95-0006-03 |
UVL-56 |
Handheld UV Lamp, 365 nm
|
98-0006-03
|
| 95-0104-01 |
95-0104-02 |
UVM-57 |
Handheld UV Lamp, 302 nm
|
98-0004-03
|
| Replacement Parts / Accessories |
| 98-0016-03 |
J-129 |
Lamp Stand
|
| 34-0013-01 |
Replacement Tube |
6 Watt, 254 nm
|
| 34-0015-01 |
Replacement Tube |
6 Watt, 254/365 nm (split tube)
|
| 34-0034-01 |
Replacement Tube |
6 Watt, 365 nm
|
| 34-0044-01 |
Replacement Tube |
6 Watt, 302 nm
|
